Haematology Analyser on Techzbd
Today Medical equipment is more developed in our world. All people want to best Health for long life. Medical science and technology build up new technology to find out the accuracy of any kind of Medicine test. When people face unexpected health condition and make suffering for a human being.So today we are talking about Blood cell count analyse . They hug problem is our blood infection and some time need urgently.CBC or Haematology is the call machine that call by technology is a full completely different cells from blood and count with Analyser. We have both part of Haematology 3\5 part .

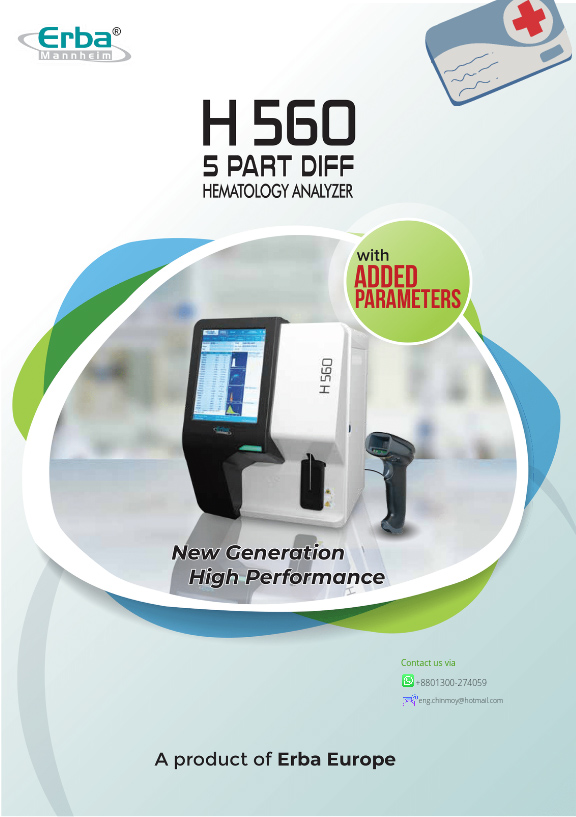

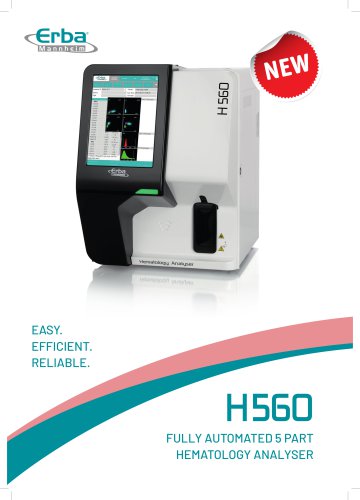

Erba Fully Automated 5 part Haematology Analyser
Model -H560
Origin : UK (Check Republic )
Manufacturer By Germany (Erba)

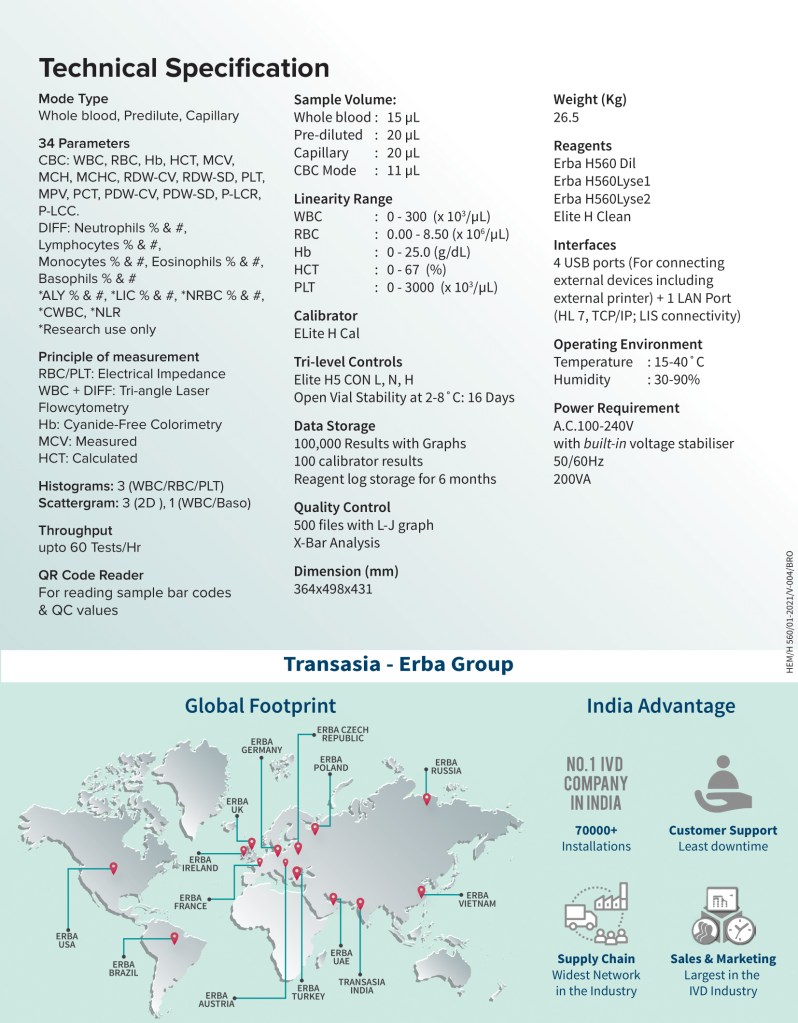

Technical Specification
Mode Type Whole blood, Predilute, Caplilary
34 Parameters
CBC WBC RBC, Hb, HCT, MCV. MCH, MCHC, RDW-CV, RDW-SD, PLT. MPV, PCT, PDW-CV, PDW-SD, P-LCR,PLCC.
DIFF: Neutrophils & #Lymphocytes & #Monocytes % & #, Eosinophils % &#. Basophils & #”ALY % & #, “LIC % & #, “NRBC % & #,”CWBC, “NLR”Research use

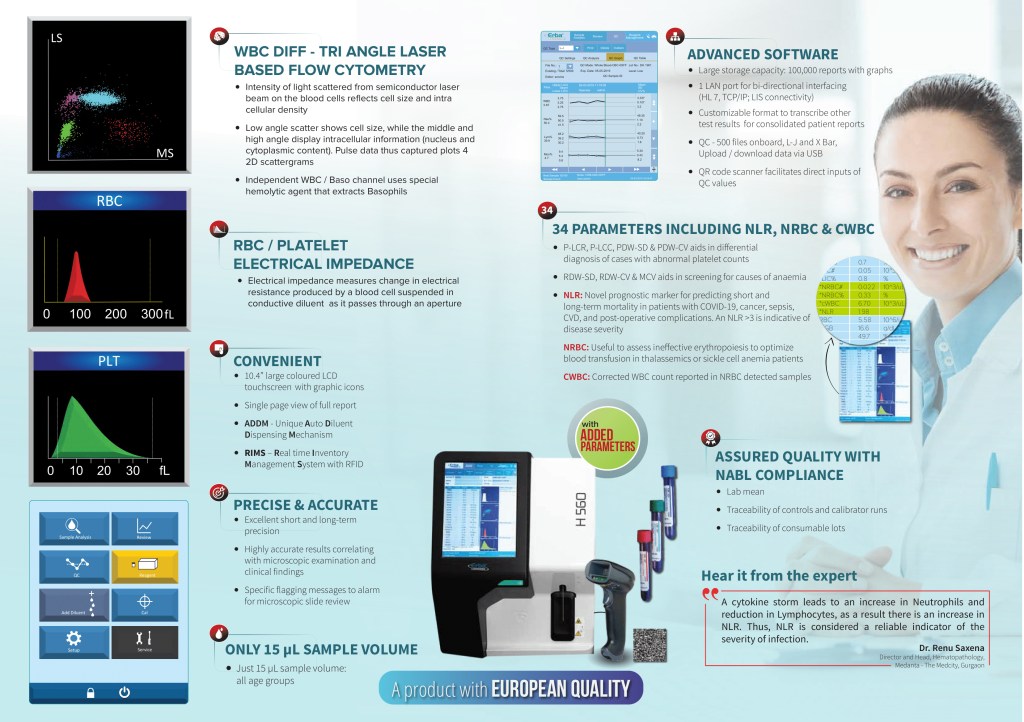

Principle of measurement
- RBC/PLT: Electrical Impedance
- WBC DIFF. Tri-angle LaserFlowcytometry
- Hb: Cyanide-Free Colorimetry
- MCV: Measured
- HCT: Calculated
Histograms: 3 (WBC/RBC/PLT) Scattergram: 3 (2D), 1 ( WBC/Baso)
Throughputupto 60 Tests/Hr
OR Code ReaderFor reading sample bar codes & QC values
Sample Volume:
- Whole blood: 15 µL
- Pre-diluted: 20 µL
- Capillary: 20 μL
- CBC Mode: 11μL
Linearity Range
- WBC. : 0-300 (x 10/pL)
- RBC :0.00-8.50 (x 10/μL)
- Hb :0-25.0 (g/dL)
- HCT :0-67 (%)
- PLT : 0-3000 (x 10/μL)
- Calibrator ELite H Cal :
Tri-level Controls
Elite H5 CON L, N, HOpen Vial Stability at 2-8°C: 16 Days
Data Storage
100,000 Results with Graphs 100 calibrator results Reagent log storage for 6 months
Weight (kg)26.5
Reagents
Erba H560 Dil
Erba H560Lysel
Erba H560Lyse2
Elite H Clener
Interfaces
4 USB ports (For connecting external devices including external printer)
+1 LAN Port (HL 7, TCP/IP: LIS connectivity)
Operating Environment
Power Requirement
A.C.100-240Vwith built-in voltage stabiliser50/60Hz200VA
Research parameters displayed :-NRBCLIC (large immature cells) and ALY(atypical lymphocytes)Cyanide free reagent for HaemoglobintestingProduct Application: Complete blood count analyser for mid-size laboratories and those looking to upgrade from 3 part differential syst
